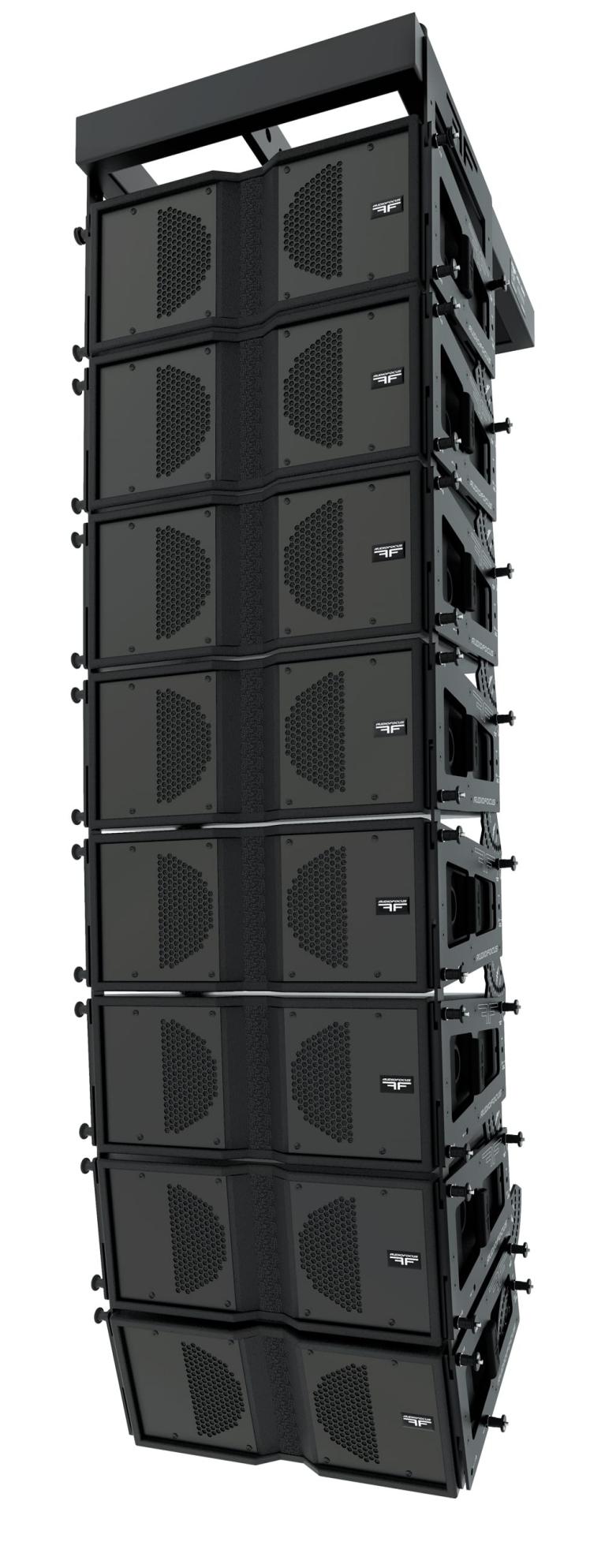

Line array (système son de grande puissance)

6 Subwoofer et 12 Top disponibles

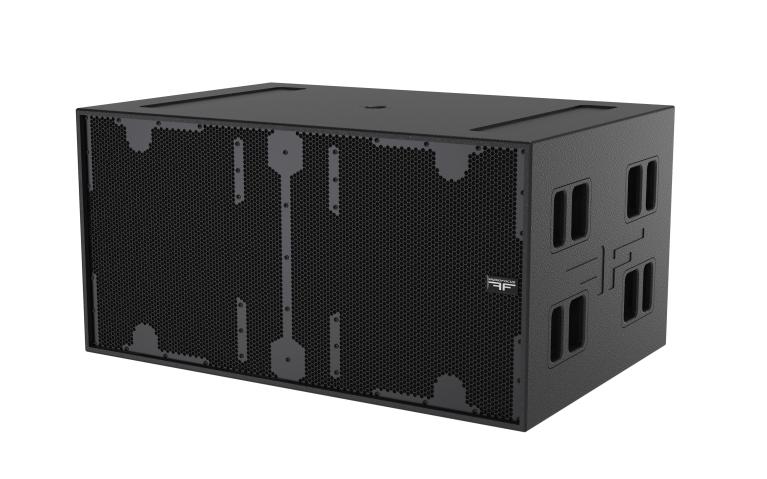

Type Vented T-ligned - Passive/Active

Components 2 x 18"" woofer & 3"" Voice coil

Power handling RMS / Peak Passive: 1400 W RMS / 2500 W Peak

Active: 2000 W RMS / 4000 W Peak

Frequency range @-3dBspl Passive: 45 Hz - 110 Hz Active: 40 Hz - 110 Hz

Sensitivity spl 2πsr 106 dB

SPL@ Peak power Passive: 141 dB

Active: 142 dB

Nominal Impedance (Passive) 4Ω

Drivers 2 x 8"" LF/MF & 1 x 1,4"" Neo driver - 1 x 3"" HF voice coil & Titanium diaphragm

Frequency range 70 Hz - 19,5 kHz

Power capacity (Wrms) Peak power Wrms: 420 W (LF) / 100 W (HF)

Peak power: 540 W (LF) / 200 W (HF)

Impedance 4Ω LF - 8Ω HF (bi-amped)

Dispersion (h x v) 110° x 7,5°(average)

Sensitivity 1W / 1m 98 dB (low) - 110 dB (high)

SPL max / 1m Bi-amped: 132 dB

Active: 133 dB
